注：L为不带传感器、制动器等附件的尺寸；355机座号接线盒在机座上方。
Note: L is the size without sensor, brake, etc; the terminal box for Frame 355 is on top of the frame.
|

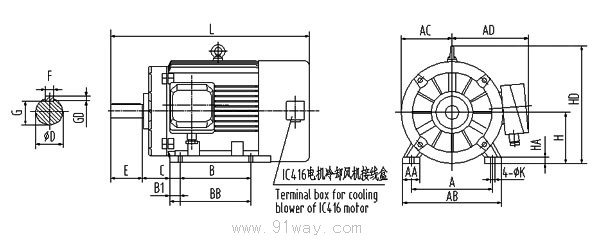

| （1）机座带底脚、端盖无凸缘（IMB3、IMB6、IMB7、IMB8、IMV5、IMV6） |
| （1）Frame with feet and endshield without flange （IMB3、IMB6、IMB7、IMB8、IMV5、IMV6） |
|
机座号 |
安 装 尺 寸 |
|
Mounting dimensions |
|
Frame |
H |
A |
B |
C |
D |
E |
F×GD |
G |
K |
|
90S |
90 |
140 |
100 |
56 |
24j6 |
50 |
8×7 |
20 |
10 |
|
90L |
90 |
140 |
125 |
56 |
24j6 |
50 |
8×7 |
20 |
10 |
|
100L |
100 |
160 |
140 |
63 |
28j6 |
60 |
8×7 |
24 |
12 |
|
112M |
112 |
190 |
140 |
70 |
28j6 |
60 |
8×7 |
24 |
12 |
|
132S |
132 |
216 |
140 |
89 |
38k6 |
80 |
10×8 |
33 |
12 |
|
132M |
132 |
216 |
178 |
89 |
38k6 |
80 |
10×8 |
33 |
12 |
|
160M |
160 |
254 |
210 |
108 |
42k6 |
110 |
12×8 |
37 |
15 |
|
160L |
160 |
254 |
254 |
108 |
42k6 |
110 |
12×8 |
37 |
15 |
|
180M |
180 |
279 |
241 |
121 |
48k6 |
110 |
14×9 |
42.5 |
15 |
|
180L |
180 |
279 |
279 |
121 |
48k6 |
110 |
14×9 |
42.5 |
15 |
|
200L |
200 |
318 |
305 |
133 |
55m6 |
110 |
16×10 |
49 |
19 |
|
225S |
225 |
356 |
286 |
149 |
60m6 |
140 |
18×11 |
53 |
19 |
|
225M |
225 |
356 |
311 |
149 |
60m6 |
140 |
18×11 |
53 |
19 |
|
250M |
250 |
406 |
349 |
168 |
65m6 |
140 |
18×11 |
58 |
24 |
|
280S |
280 |
457 |
368 |
190 |
75m6 |
140 |
20×12 |
67.5 |
24 |
|
280M |
280 |
457 |
419 |
190 |
75m6 |
140 |
20×12 |
67.5 |
24 |
|
315S |
315 |
508 |
406 |
216 |
80m6 |
170 |
22×14 |
71 |
28 |
|
315M |
315 |
508 |
457 |
216 |
80m6 |
170 |
22×14 |
71 |
28 |
|
315L |
315 |
508 |
508 |
216 |
80m6 |
170 |
22×14 |
71 |
28 |
|
355M |
355 |
610 |
560 |
254 |
95m6 |
170 |
25×14 |
86 |
28 |
|
355L |
355 |
610 |
630 |
254 |
95m6 |
170 |
25×14 |
86 |
28 | |
|
|
机座号 |
外 形 尺 寸 |
|
Mounting dimensions |
|
Frame |
AA |
AB |
AC |
AD |
B1 |
BB |
HD |
HA |
L(IC416) |
L(IC411) |
|
90S |
40 |
180 |
88 |
155 |
24 |
173 |
190 |
13 |
400 |
340 |
|
90L |
40 |
180 |
88 |
155 |
24 |
198 |
190 |
13 |
430 |
370 |
|
100L |
45 |
205 |
103 |
180 |
23 |
198 |
245 |
14 |
465 |
395 |
|
112M |
50 |
245 |
115 |
190 |
21 |
214 |
265 |
15 |
490 |
430 |
|
132S |
60 |
280 |
135 |
210 |
32 |
214 |
315 |
18 |
525 |
475 |
|
132M |
60 |
280 |
135 |
210 |
32 |
264 |
315 |
18 |
575 |
525 |
|
160M |
70 |
330 |
163 |
255 |
28 |
266 |
385 |
22 |
645 |
590 |
|
160L |
70 |
330 |
163 |
255 |
28 |
311 |
385 |
22 |
690 |
635 |
|
180M |
70 |
355 |
180 |
285 |
24.5 |
360 |
430 |
22 |
810 |
730 |
|
180L |
70 |
355 |
180 |
285 |
24.5 |
400 |
430 |
22 |
850 |
770 |
|
200L |
75 |
395 |
200 |
310 |
32 |
407 |
475 |
25 |
890 |
815 |
|
225S |
75 |
435 |
225 |
345 |
47 |
407 |
530 |
28 |
930 |
860 |
|
225M |
75 |
435 |
225 |
345 |
47 |
447 |
530 |
28 |
970 |
900 |
|
250M |
80 |
490 |
248 |
450 |
56 |
442 |
575 |
30 |
1050 |
915 |
|
280S |
90 |
545 |
280 |
480 |
79 |
497 |
660 |
35 |
1100 |
985 |
|
280M |
90 |
545 |
280 |
480 |
79 |
577 |
660 |
35 |
1180 |
1065 |
|
315S |
125 |
635 |
320 |
530 |
84 |
535 |
770 |
45 |
1300 |
1100 |
|
315M |
125 |
635 |
320 |
530 |
84 |
720 |
770 |
45 |
1350 |
1285 |
|
315L |
125 |
635 |
320 |
530 |
84 |
720 |
770 |
45 |
1450 |
1285 |
|
355M |
130 |
730 |
355 |
355 |
116 |
728 |
1010 |
50 |
1650 |
1350 |
|
355L |
130 |
730 |
355 |
355 |
116 |
858 |
1010 |
50 |
1750 |
1480 | |
注：L为不带传感器、制动器等附件的尺寸。
Note: L is the size without sensor, brake, etc.
|
|
|

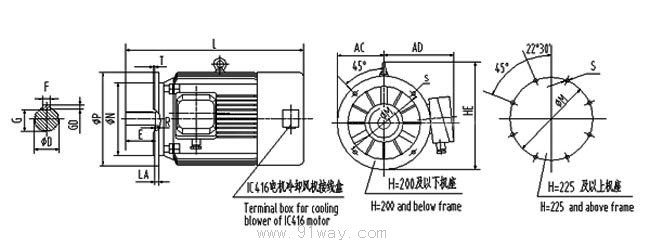

（2）机座无底脚、端盖带凸缘（IMB5、IMV1、IMV3） |
|
（2）Frame without feet and endshield with flange （IMB5、IMV1、IMV3） |
|
机座号 |
安 装 尺 寸 |
|
Mounting dimensions |
|
Frame |
D |
E |
F×GD |
G |
T |
M |
N |
P |
R |
S |
|
90S |
24j6 |
50 |
8×7 |
20 |
3.5 |
165 |
130j6 |
200 |
0 |
4×φ12 |
|
90L |
24j6 |
50 |
8×7 |
20 |
3.5 |
165 |
130j6 |
200 |
0 |
4×φ12 |
|
100L |
28j6 |
60 |
8×7 |
24 |
4 |
215 |
180j6 |
250 |
0 |
4×φ15 |
|
112M |
28j6 |
60 |
8×7 |
24 |
4 |
215 |
180j6 |
250 |
0 |
4×φ15 |
|
132S |
38k6 |
80 |
|
