产品名称： | NA系列轴向精密锁紧螺母 | ||||
| 型号规格： |   放大图片 |
|||||
| 产品类别： | 常规产品 -- 五金工具 -- 紧固件 | |||||
| |
参考价格： | 厂价直销 | ||||
| 产品品牌： | 国产 | |||||
| 产品产地： | 上海 | |||||
| |
可供数量： | 批量 | ||||
| 供货周期： | 现货(或电询) | |||||
 |
|
|||||
| |
产品简介： |
|
||||

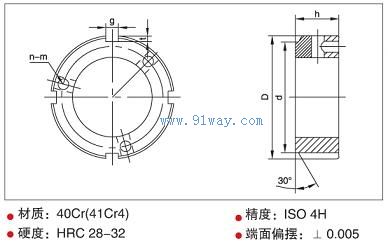

| 产品规格 | 螺纹和螺距 | D | h | g | t | d | n-m | MAX.Nm | 轴向负载（KN） |
| NA 14-1.5 | M14x1.5 | 30 | 14 | 4 | 2 | 25 | 2-M4 | 3.5 | 60 |
| NA 15-1.0 | M15x1 | 30 | 14 | 4 | 2 | 25 | 2-M4 | 3.5 | 60 |
| NA 16-1.5 | M16x1.5 | 30 | 14 | 4 | 2 | 25 | 2-M4 | 3.5 | 60 |
| NA 17-1.0 | M17x1 | 32 | 16 | 4 | 2 | 27 | 2-M4 | 3.5 | 80 |
| NA 18-1.5 | M18x1.5 | 32 | 16 | 4 | 2 | 27 | 2-M4 | 3.5 | 80 |
| NA 20-1.0 | M20x1 | 38 | 16 | 4 | 2 | 33 | 3-M4 | 4.5 | 90 |
| NA 20-1.5 | M20x1.5 | 38 | 16 | 4 | 2 | 33 | 3-M4 | 4.5 | 90 |
| NA 22-1.5 | M22x1.5 | 38 | 16 | 4 | 2 | 33 | 3-M4 | 4.5 | 130 |
| NA 24-1.5 | M24x1.5 | 38 | 18 | 5 | 2 | 33 | 3-M4 | 4.5 | 130 |
| NA 25-1.5 | M25x1.5 | 38 | 18 | 5 | 2 | 33 | 3-M4 | 4.5 | 130 |
| NA 27-1.5 | M27x1.5 | 40 | 18 | 5 | 2 | 35 | 3-M4 | 4.5 | 140 |
| NA 30-1.5 | M30x1.5 | 45 | 18 | 5 | 2 | 40 | 3-M4 | 4.5 | 160 |
| NA 32-1.5 | M32x1.5 | 50 | 18 | 5 | 2 | 45 | 3-M4 | 4.5 | 170 |
| NA 33-1.5 | M33x1.5 | 50 | 18 | 5 | 2 | 45 | 3-M4 | 4.5 | 190 |
| NA 35-1.5 | M35x1.5 | 52 | 18 | 5 | 2 | 47 | 3-M6 | 8 | 190 |
| NA 36-1.5 | M36x1.5 | 52 | 18 | 5 | 2 | 47 | 3-M6 | 8 | 190 |
| NA 39-1.5 | M39x1.5 | 58 | 20 | 6 | 2.5 | 52 | 3-M6 | 8 | 210 |
| NA 40-1.5 | M40x1.5 | 58 | 20 | 6 | 2.5 | 52 | 3-M6 | 8 | 210 |
| NA 42-1.5 | M42x1.5 | 62 | 20 | 6 | 2.5 | 56 | 3-M6 | 8 | 220 |
| NA 45-1.5 | M45x1.5 | 65 | 20 | 6 | 2.5 | 59 | 3-M6 | 8 | 240 |
| NA 48-1.5 | M48x1.5 | 70 | 20 | 6 | 2.5 | 64 | 3-M6 | 8 | 300 |
| NA 50-1.5 | M50x1.5 | 70 | 20 | 6 | 2.5 | 64 | 3-M6 | 8 | 300 |
| NA 52-1.5 | M52x1.5 | 73 | 22 | 7 | 3 | 68 | 3-M6 | 8 | 320 |
| NA 55-1.5 | M55x1.5 | 75 | 22 | 7 | 3 | 68 | 3-M6 | 8 | 340 |
| NA 55-2 | M55x2.0 | 75 | 22 | 7 | 3 | 68 | 3-M6 | 8 | 340 |
| NA 56-1.5 | M56x1.5 | 75 | 22 | 7 | 3 | 68 | 3-M6 | 8 | 340 |
| NA 56-2 | M56x2 | 75 | 22 | 7 | 3 | 68 | 3-M6 | 8 | 340 |
| NA 60-2 | M60x2 | 80 | 22 | 7 | 3 | 73 | 3-M6 | 8 | 380 |
| NA 64-1.5 | M64x1.5 | 85 | 22 | 7 | 3 | 78 | 3-M6 | 8 | 460 |
| NA 64-2 | M64x2 | 85 | 22 | 7 | 3 | 78 | 3-M6 | 8 | 460 |
| NA 65-2 | M65x2 | 85 | 22 | 7 | 3 | 78 | 3-M6 | 8 | 460 |
| NA 68-2 | M68x2 | 92 | 24 | 8 | 3.5 | 84 | 3-M8 | 18 | 490 |
| NA 70-2 | M70x2 | 92 | 24 | 8 | 3.5 | 84 | 3-M8 | 18 | 490 |
| NA 72-2 | M72x2 | 94 | 24 | 8 | 3.5 | 86 | 3-M8 | 18 | 500 |
| NA 75-2 | M75x2 | 98 | 24 | 8 | 3.5 | 90 | 3-M8 | 18 | 520 |
| NA 76-2 | M76x2 | 98 | 24 | 8 | 3.5 | 91 | 3-M8 | 18 | 520 |
| NA 80-2 | M80x2 | 105 | 24 | 8 | 3.5 | 96 | 3-M8 | 18 | 620 |
| NA 85-2 | M85x2 | 110 | 24 | 8 | 3.5 | 102 | 3-M8 | 18 | 650 |
| NA 90-2 | M90x2 | 120 | 26 | 10 | 4 | 108 | 3-M8 | 18 | 680 |
| NA 95-2 | M95x2 | 125 | 26 | 10 | 4 | 113 | 3-M8 | 18 | 710 |
| NA 100-2 | M100x2 | 130 | 26 | 10 | 4 | 118 | 3-M8 | 18 | 740 |
| NA 105-2 | M105x2 | 140 | 28 | 12 | 5 | 125 | 3-M10 | 35 | 770 |
| NA 110-2 | M110x2 | 145 | 28 | 12 | 5 | 132 | 3-M10 | 35 | 800 |
| NA 115-2 | M115x2 | 150 | 28 | 12 | 5 | 137 | 3-M10 | 35 | 830 |
| NA 120-2 | M120x2 | 155 | 30 | 12 | 5 | 142 | 3-M10 | 35 | 860 |
| NA 125-2 | M125x2 | 160 | 30 | 12 | 5 | 147 | 3-M10 | 35 | 890 |
| NA 130-2 | M130x2 | 165 | 30 | 12 | 5 | 152 | 3-M10 | 35 | 920 |
| NA 135-2 | M135x2 | 175 | 32 | 14 | 6 | 160 | 3-M12 | 60 | 950 |
| NA 140-2 | M140x2 | 180 | 32 | 14 | 6 | 165 | 3-M12 | 60 | 980 |
| NA 145-2 | M145x2 | 190 | 32 | 14 | 6 | 175 | 3-M12 | 60 | 1010 |
| NA 150-2 | M150x2 | 195 | 32 | 14 | 6 | 180 | 3-M12 | 60 | 1040 |
| NA 155-3 | M155x3 | 200 | 34 | 16 | 7 | 180 | 3-M12 | 60 | 1070 |
| NA 160-3 | M160x3 | 210 | 34 | 16 | 7 | 190 | 3-M12 | 60 | 1100 |
| NA 165-3 | M165x3 | 210 | 34 | 16 | 7 | 190 | 3-M12 | 60 | 1130 |
| NA 170-3 | M170x3 | 220 | 34 | 16 | 7 | 200 | 3-M12 | 60 | 1160 |
| NA 180-3 | M180x3 | 230 | 36 | 18 | 8 | 205 | 3-M12 | 60 | 1220 |
| NA 190-3 | M190x3 | 240 | 36 | 18 | 8 | 215 | 3-M12 | 60 | 1280 |
| NA 200-3 | M200x3 | 250 | 38 | 18 | 8 | 225 | 3-M12 | 60 | 1340 |
| NA 220-3 | M220x3 | 270 | 38 | 18 | 8 | 245 | 3-M12 | 60 | |
| NA 2204 | M220x4 | 270 | 38 | 18 | 8 | 245 | 3-M12 | 60 | |
| NA 240-3 | M240x3 | 290 | 38 | 18 | 8 | 265 | 3-M12 | 60 | |
| NA 260-3 | M260x3 | 310 | 38 | 18 | 8 | 285 | 3-M12 | 60 | |
| NA 260-4 | M260x4 | 310 | 38 | 18 | 8 | 285 | 3-M12 | 60 | |
| NA 280-4 | M280x4 | 330 | 40 | 18 | 8 | 305 | 3-M12 | 60 | |
| NA 300-4 | M300x4 | 350 | 40 | 18 | 8 | 325 | 3-M12 | 60 |
