Product name：

NH160LYX series rare earth permanent magnet DC torque motor

specification：

Zoom in on the image

Category：

motor products -- DC torque motor

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

NH160LYX series rare earth permanent magnet DC torque motorDetailed product description：

NH160LYX series rare earth permanent magnet DC torque motor

The NH-LYX series permanent magnet DC torque motor is a permanent magnet DC torque motor that uses rare earth permanent magnet materials as the stator permanent magnet poles. This series of motors is a new generation of high-efficiency DC torque motors developed by continuously optimizing the design and improving the structure based on the original LYX series DC torque motor. Features: The NH-LYX series inherits the characteristics of the original LYX series DC torque motor, such as locked rotor operation, fast response speed, low no-load speed, large low-speed torque, good linearity, small torque fluctuation, and simple structure. It also has more new features such as small size and light weight. Under the same torque, the NH-LYX series requires less electrical power, and can output torque equivalent to twice that of the LYX series with the same volume.

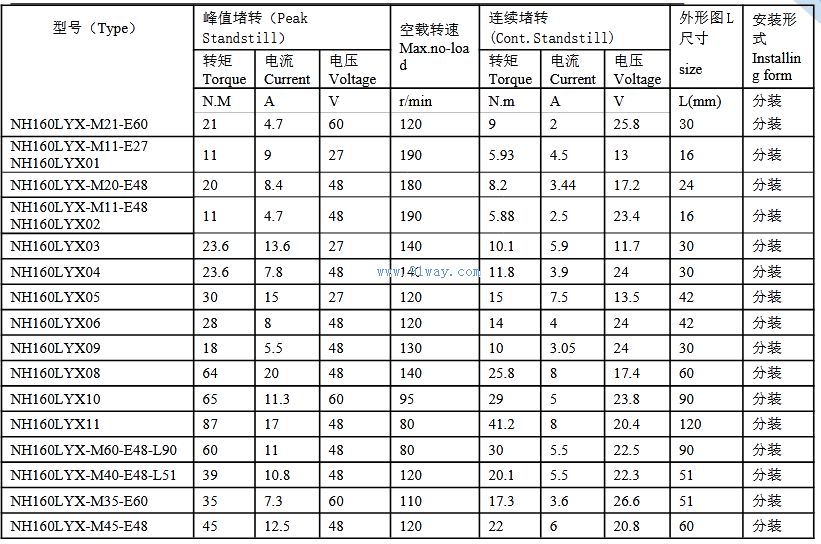

Model number	Peak blockage				Maximum empty load	Continuous blockage
	Torque	electric current	Voltage	power	speed	torque	electric current	Voltage	power	quality
	（N·M）	（A）	（V）	（W）	（r/min）	（N·M）	（A）	（V）	（W）	（kg）
NH160LYX01	eleven point eight	nine	twenty-seven	two hundred and forty-three	one hundred and ninety	seven	five point three	sixteen	eighty-four point eight	five point five
NH160LYX02	eleven point eight	five point two	forty-eight	two hundred and eighty-three point two	one hundred and ninety	seven	three point three	thirty	ninety-nine	five point five
NH160LYX03	twenty-three point six	eleven point eight	twenty-seven	three hundred and eighteen	one hundred and twenty	thirteen	six point five	fourteen point eight	ninety-four point three	eight
NH160LYX04	twenty-three point six	eight point one	forty-eight	three hundred and eighty-eight	one hundred and twenty	thirteen	four point five	twenty-six point five	one hundred and eighteen	eight
NH160LYX05	thirty	thirteen point five	twenty-seven	three hundred and sixty-four	one hundred and twenty	twenty	nine	eighteen	one hundred and fifty-two	twelve
NH160LYX06	thirty	eight point seven	forty-eight	four hundred and twenty-two	one hundred and twenty	twenty	five point eight	thirty-two	one hundred and eighty-five point six	twelve
NH160LYX09	nineteen point six	five point three	forty-eight	two hundred and fifty-four	one hundred and twenty	thirteen	three point five	thirty-one point six	one hundred and ten point nine	eight point five

NH160LYX series rare earth permanent magnet DC torque motor（schematic diagram）
