CJX2-F115(LC1-F115) series AC contactor

specification：

Zoom in on the image

Category：

low-voltage electrical apparatus -- AC contactor

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13916500500(Wechat)

CJX2-F115(LC1-F115) series AC contactorDetailed product description：

Scope of application
The LC1-F series AC contactor (hereinafter referred to as the contactor) is suitable for AC 50Hz or 60Hz, and can be used in circuits with special coils ranging from 40-400Hz, voltage up to 600V, and current up to 630A. It is used for the connection and disconnection of the main circuit, and is suitable for frequent starting and control of electric motors; Can be used in conjunction with various relays and other electrical equipment, for controlling various electrical devices, motors, and circuits. It can also be combined with auxiliary contact groups, air delay heads, mechanical interlocks, etc. to form mechanical interlock contactors, star delta starters, and can be combined with thermal relays to form magnetic starters.

Model and its meaning

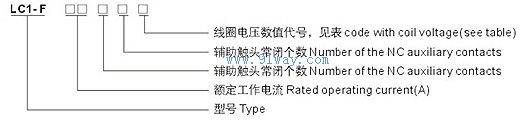

CJX2-F115 (LC1-F115) series AC contactor model description

Technical parameters of CJX2-F115 (LC1-F115) series AC contactor

Model Type			LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330	LC1-F400	LC1-F500	LC1-F630
Rated working current le (A) Rated operational current	AC-3	380V	one hundred and fifteen	one hundred and fifty	one hundred and eighty-five	two hundred and twenty-five	two hundred and sixty-five	three hundred and thirty	four hundred	five hundred	six hundred and thirty
	AC-3	660V	eighty-six	one hundred and seven	one hundred and eighteen	one hundred and twenty-five	one hundred and seventy	three hundred and twenty-five	three hundred and five	three hundred and fifty-five	four hundred and sixty
	AC-4	380V	fifty-two	sixty	seventy-nine	eighty-five	one hundred and five	two hundred and seventeen	one hundred and thirty-eight	one hundred and forty-seven	one thousand eight hundred and eighty
	AC-4	660V	forty-nine	sixty-one	sixty-nine	eighty-two	ninety-eight	one hundred and eighteen	one hundred and thirty-five	one hundred and forty-five	one hundred and seventy
Controllable three-phase squirrel cage motor ****** power Pe(kw) Controlled squirrel-cage asnchronous motor's max power pe(kw)	AC-3	380V	fifty-five	seventy-five	ninety	one hundred and ten	one hundred and thirty-two	one hundred and sixty	two hundred	two hundred and fifty	three hundred and thirty-five
	AC-3	660V	eighty	one hundred	one hundred and ten	one hundred and twenty-nine	one hundred and sixty	two hundred and twenty	two hundred and eighty	three hundred and thirty-five	four hundred and fifty
	AC-4	380V	twenty-five	thirty	forty	forty-five	fifty-five	sixty-three	seventy-five	eighty	one hundred
	AC-4	660V	forty-five	fifty-five	thirty	seventy-five	ninety	one hundred and ten	one hundred and twenty-nine	one hundred and forty	one hundred and sixty
Agreed heating current (A) Convention althermal current			two hundred	two hundred and fifty	two hundred and seventy-five	three hundred and fifteen	three hundred and fifty		five hundred	seven hundred	one thousand
Rated operating voltage (Ue) Vrated operational voltage			380, 660
Rated insulation voltage (Ui)			six hundred and sixty
Compliant with standard operating frequency			IEC947、GB14048
AC-3	Electric lifespan times Electrical endurance		60×10^four		50×10^four			30×10^four		20×10^four
AC-3	Operating frequency h-1 Swiching frequency		six hundred					three hundred
AC-4	Electric lifespan times Electrical endurance				15×10^four			8×10^four		5×10^four
AC-4	Operating frequency h-1 Swiching frequency		one hundred and fifty
Mechanical lifespan (× 10)^six)Mechanical endurance			3×10^six					1×10^six
auxiliary contact Auxiiary contacts	Agreed heating current (1st) Aconveentional thermal current		ten
	Electric lifespan times Electrical endurance	AC-15	60×10^four		50×10^four			30×10^four		20×10^four
	Electric lifespan times Electrical endurance	AC-13	60×10^four		50×10^four			30×10^four		20×10^four

CJX2-F115(LC1-F115) series AC contactor（schematic diagram）
