Your location：Home → motor products → synchronous motor → Communication traction motor → XYQ-7.5-3ABHV Sightseeing car AC traction motor |

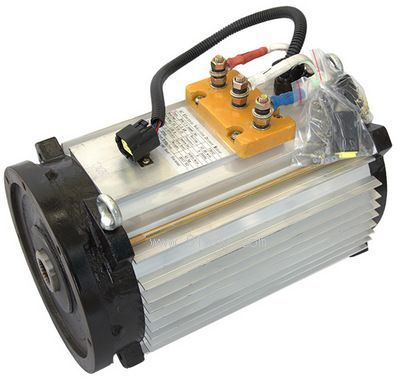

Product name： | XYQ-7.5-3ABHV Sightseeing car AC traction motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- Communication traction motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Motor model | XYQ-7.5-3ABHV |
rated power | 7.5KW |
battery voltage | 72V(D.C) |
rated voltage | 51V(A.C) |
rated current | 118A |
rated speed | 3440r/min |
frequency | 0-200Hz |
quota | 60min |
protection level | IP54 |
Encoder output signal | 64P/rev |
Applicable to | 11-14 seat tour buses, parade floats |
structural characteristics | Round flange connection, internal spline output shaft (m=1, z=24), with temperature and speed sensors |
