Your location：Home → motor products → synchronous motor → Communication traction motor → XYQ-9AHV Sightseeing car AC traction motor |

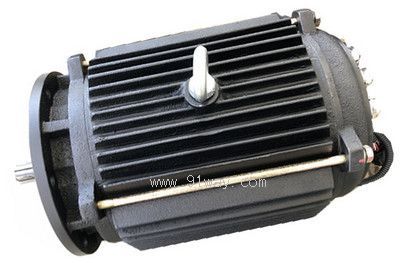

Product name： | XYQ-9AHV Sightseeing car AC traction motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- Communication traction motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Motor model | XYQ-9AHV |
rated power | 9KW |
battery voltage | 72V(D.C) |
rated voltage | 45V(A.C) |
rated current | 153A |
rated speed | 2926r/min |
frequency | 0-200Hz |
quota | 60min |
protection level | IP54 |
Encoder output signal | 64P/rev |
Applicable to | Tourist buses for 14-19 seats |
structural characteristics | Six tooth rectangular spline shaft (6-28 × 28 × 23 × 6) with lead out wire |
