Product name：

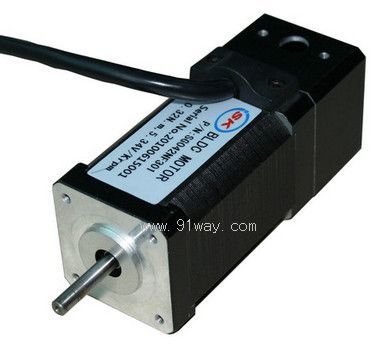

42SW series brushless DC motor

specification：

Zoom in on the image

Category：

motor products -- DC brushless motor

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

42SW series brushless DC motorDetailed product description：

42SW series brushless DC motor
42mm iron core
Insulation grade F, high temperature resistance of 155 degrees Celsius
Special electromagnetic structure design, without any cogging effect
Optional NEMA17 standard gearbox, more convenient for various automation applications
Removable end caps, optional installation of various drivers, encoders, etc
Maximum radial load
Maximum axial load
Can replace imported motors: AMETEK MCG PITTMAN BTSR
Widely used in sewing machines, positioning systems, and linear motion mechanisms

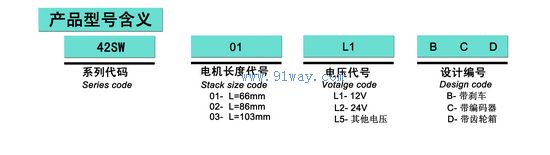

42SW series brushless DC motor model description

Standard Model Part Number	Unit	42SW01	42SW02	42SW03
Rated Torque	N.m	zero point one two	zero point two	zero point three one
Rotary Inertia	g.cm^two	zero point zero one two	zero point zero three	zero point zero four five
Total Length	mm	sixty-six	eighty-six	one hundred and three
Weight	Kgs	zero point four	zero point five five	zero point six five

Different winding parameters: Winding Options	Unit	01L2	02L2	03L2
Rated Voltage	V	twenty-four	twenty-four	twenty-four
No load speed	rpm	three thousand and six hundred	three thousand and eight hundred	three thousand four hundred and fifty
No load current	A	zero point three	zero point six	zero point eight five
Rated Speed	rpm	three thousand	three thousand one hundred and fifty	two thousand and eight hundred
Rated Current	A	two point three	three point nine	five point four
Rated power output	W	thirty-eight	sixty-five	ninety
Back EMF constant	V/Krpmpm	six point six six	six point three	six point nine five

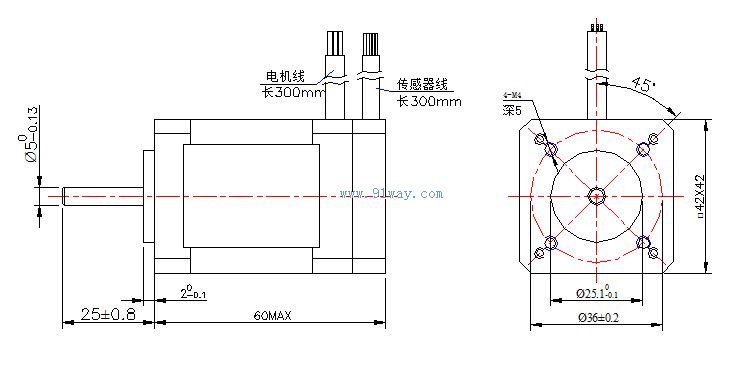

42SW series brushless DC motor（schematic diagram）
