Product name：

80SWY series brushless DC motor

specification：

Zoom in on the image

Category：

motor products -- DC brushless motor

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

80SWY series brushless DC motorDetailed product description：

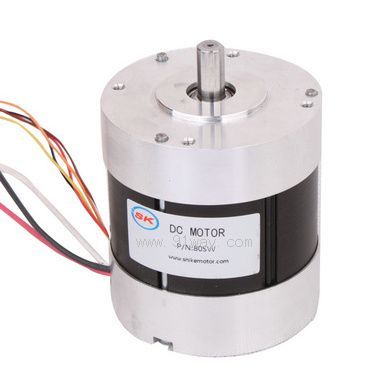

80SWY series brushless DC motor
80mm diameter motor
Insulation grade F, high temperature resistance of 155 degrees Celsius
Using imported silent bearings for longer service life
Using high-performance magnetic materials to replace brushed motors of the same power, with smaller size and longer lifespan
No electromagnetic interference or mechanical wear, the optimal choice to replace 80 brushed motors
Various drivers, encoders, etc. can be optionally installed, suitable for different automation equipment applications
The application of air pump motors, electric vehicle brushless motors, medical motors and other motors can replace imported motors: AMETEK MCG MOOG
Widely used in textile machinery, air pump motors, brushless motors for electric vehicles, medical motors, mid drive electric vehicles, scooters, etc

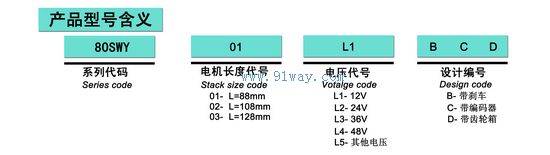

80SWY series brushless DC motor model description

Standard Model Part Number	Unit	80SWY01	80SWY02	80SWY03
Rated Torque	N.m	zero point eight	one point two	one point five
Rotary Inertia	Kg.cm^two	zero point one eight	zero point two four	zero point three two
Total Length (L)	mm	eighty-eight	one hundred and eight	one hundred and twenty-eight
Weight	Kgs	one point two	one point five	one point nine

80SWY series brushless DC motor (air pump motor, electric vehicle brushless motor, medical motor) performance parameters:

Different winding parameters: Winding Options	Unit	01L2	02L4	03L5
Rated Voltage	V	twenty-four	forty-eight	sixty
No load speed	rpm	two thousand and eight hundred	three thousand four hundred and fifty	three thousand four hundred and fifty
No load current	A	zero point six	zero point eight	zero point nine
Rated Speed	rpm	two thousand and three hundred	two thousand and nine hundred	three thousand
Rated Current	A	eleven point five	eleven	eleven point five
Rated power output	W	one hundred and ninety-five	three hundred and fifty-five	four hundred and sixty-five
Back EMF constant	V/Krpm	eight point five seven	thirteen point nine	seventeen point four

80SWY series brushless DC motor（schematic diagram）
