Product name：

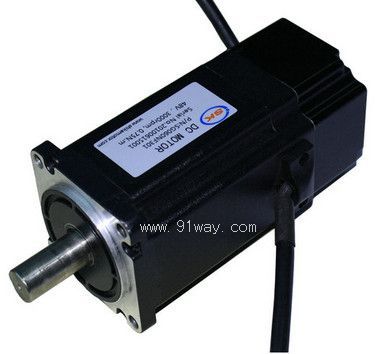

60SWA series permanent magnet brushless DC motor

specification：

Zoom in on the image

Category：

motor products -- DC brushless motor

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

60SWA series permanent magnet brushless DC motorDetailed product description：

60SWA series permanent magnet brushless DC motor: 60mm iron core
Insulation grade F, high temperature resistance of 155 degrees Celsius
Using imported silent bearings for longer service life
Optional NEMA23 standard gearbox, more convenient for various automation applications
Removable end caps, optional installation of various drivers, encoders, etc
Maximum radial load
Maximum axial load
Can replace imported motors: PANOSONIC, MOOG
The 60SWA series permanent magnet brushless DC motor is widely used in XY platforms, engraving machines, sewing machines, and wire feeding systems

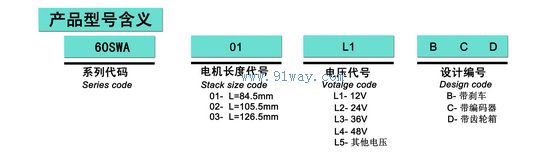

60SWA series permanent magnet brushless DC motor model description

Standard Model Part Number	Unit	60SWA01	60SWA02	60SWA03
Rated Torque	N.m	zero point three eight	zero point six	zero point seven five
Rotary Inertia	g.cm^two	zero point zero nine	zero point one seven	zero point two eight
Total Length	mm	eighty-four point five	one hundred and five point five	one hundred and twenty-six point five
Weight	Kgs	zero point eight five	one point zero five	one point two five

Different winding parameters: Winding Options	Unit	01L2	02L3	03L4
Rated Voltage	V	twenty-four	thirty-six	forty-eight
No load speed	rpm	three thousand	three thousand two hundred and fifty	three thousand
No load current	A	zero point eight	one	zero point seven five
Rated Speed	rpm	two thousand and five hundred	two thousand and six hundred	two thousand and five hundred
Rated Current	A	six	six point five	six point four
Rated power output	W	ninety-nine	one hundred and sixty-three	two hundred and fifteen
Back EMF constant	V/Krpmpm	eight	eleven	sixteen

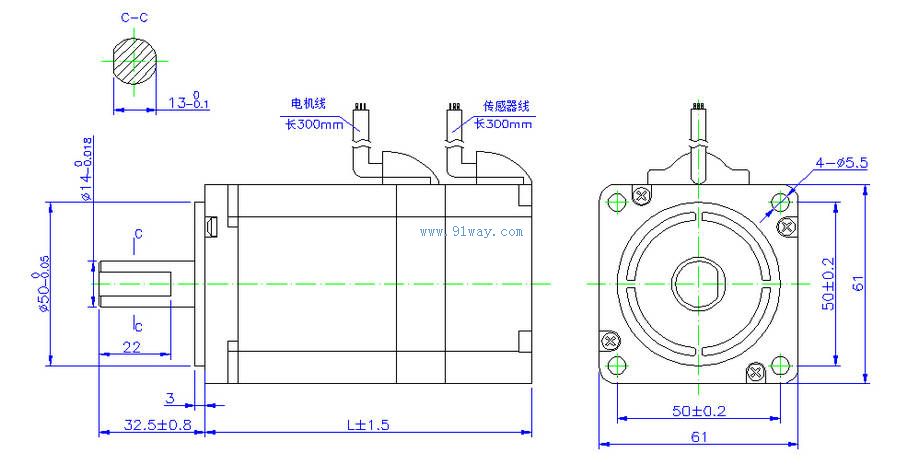

60SWA series permanent magnet brushless DC motor（schematic diagram）
