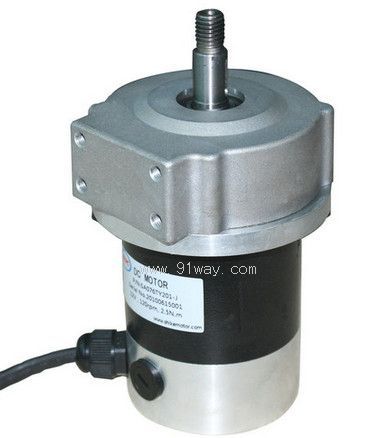

76ZYTJ series DC gear motorDetailed product description：

76ZYTJ series DC gear motor with a diameter of 76mm and planetary gear design
Insulation grade F, high temperature resistance of 155 degrees Celsius
Using imported silent bearings for longer service life
Using high-performance magnetic materials to replace brushed motors of the same power, with smaller size and longer lifespan
Planetary gear design, using gear grinding technology for lower noise and longer lifespan
Various drivers, encoders, etc. can be optionally installed, suitable for different automation equipment applications

76ZYTJ series DC gear motor (worm gear motor) can replace imported motors: AMETEK MCG PITTMAN
Widely used in various feeding systems, edge brush machinery, environmental protection machinery, etc

Standard Model Part Number	Unit	76ZYTJ01	76ZYTJ02
Rated Torque	N.m	three	five
Rotary Inertia	g.cmtwo	ten point one	thirteen point two
Motor Length	mm	one hundred and two	one hundred and thirty-three
Total Length	mm	one hundred and thirty-four	one hundred and sixty-five
Weight	Kgs	three point six	three point eight

Different winding parameters: Winding Options	Unit	01L2	02L3
Rated Voltage	V	twenty-four	thirty-six
No load speed	rpm	one hundred and ninety	two hundred and fifty
No load current	A	one	one point three
Rated Speed	rpm	one hundred and fifty	one hundred and ninety
Rated Current	A	three	four point two
Rated power output	W	fifty	one hundred
