Your location：Home → motor products → DC motor → DC brushless motor → 83ZWS04 DC permanent magnet brushless motor |

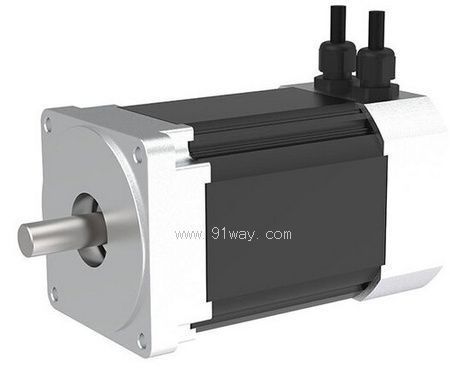

Product name： | 83ZWS04 DC permanent magnet brushless motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC brushless motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
|
Motor Data |
Units |
Part No. |
|
83ZWS04 | ||
|
Continuous load |
Nm |
one point five two |
|
maximum speed |
rpm |
six thousand |
|
EMF constant |
V/KRPM |
fourteen point seven |
|
resistor |
Ω |
zero point two five nine |
|
inductance |
mH |
one point zero five |
