Motor Data

Units

Part No.

SZX013

SZX014

SZX186

Peak thrust

(N)

one thousand

one thousand

eight hundred and thirty-nine

Continuous thrust

(N)

six hundred and fifty

six hundred and fifty

two hundred and thirty

Force constant (Kfs) 5-15A

N/A

thirty-nine point eight one

thirty-eight point eight one

eighty-five point three

Force constant (Kfp) 5-15A

N/Arms

fifty-six point two nine

fifty-six point two nine

one hundred and twenty point six

peak current

(A)

twenty-five

twenty-five

twelve

Continuous power

(w)

one hundred and fifty-eight point seven

one hundred and fifty-eight point seven

forty point eight two

continuous current

(A)

eleven point five

eleven point five

two point seven

motor constant

N/W

fifty-one point six

fifty-one point six

twenty-six

phase resistance

(Ω)

zero point five nine six

zero point five nine six

two point eight

back electromotive force

(V/m/s)

thirty-two point five

thirty-two point five

sixty-nine point seven

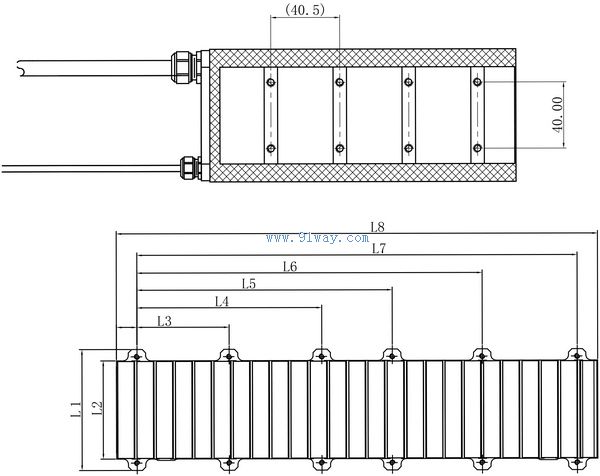

Installation size L1

mm

seventy-one

seventy-one

Installation size L2

mm

fifty-seven

fifty-seven

Installation size L3

mm

fifty-four

fifty-four

Installation size L4

mm

one hundred and eight

one hundred and nine

Installation size L5

mm

one hundred and fifty

one hundred and sixty-three

Installation size L6

mm

two hundred and three

two hundred and eighteen

Installation size L7

mm

two hundred and fifty-eight

two hundred and seventy-two

Installation size L8

mm

two hundred and eighty-two

two hundred and ninety-five
