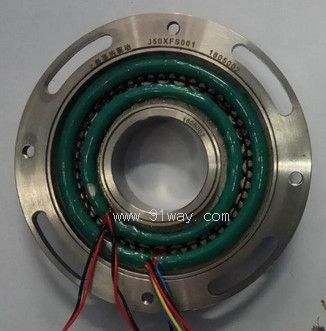

J50XFS001 type dual channel rotary transmitterDetailed product description：

J50XFS001 dual channel rotary transmitter

Polar logarithm: 1:16 pairs
Excitation voltage: 4V (effective value)
Excitation frequency: 2000Hz
Output voltage: (2 ± 0.2) V
Accuracy: ≤± 20 ′ (coarse machine), ≤± 30 ″ (fine machine)
Zero position deviation: ≤ 40 '
Input impedance: (1200 ± 120) Ω (coarse machine), (150 ± 15) Ω (fine machine)
Phase shift:+20 ° (coarse machine),+35 ° (fine machine)
Allowable working temperature range -55 ℃~+155 ℃
Maximum allowable speed: 2000RPM
Anti vibration: ≥ 20G Anti impact: ≥ 200G
Protection: Can withstand salt spray test.
Due to the use of a structure similar to that of a motor, it has high reliability

J50XFS001 dual channel rotary transmitter

Can meet designs of different external dimensions
Can provide different levels of protection (IP)
Can provide higher and lower temperature resistance levels (up to 220 ℃, down to -80 ℃)
Can provide higher accuracy (up to ≤± 5 ″)
