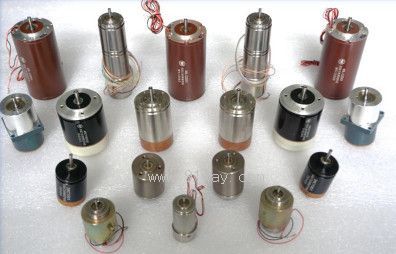

J52XFW001 type brushless rotary transmitterDetailed product description：

J52XFW001 brushless rotary transmitter

Polar logarithm: 1 pair level
Excitation voltage: 7.0V (effective value)
Excitation frequency: 10000Hz
Output voltage: (3.5 ± 0.2) V
Accuracy: ≤± 10 ′
Input impedance: (150 ± 15) Ω
Phase shift: ± 5 °
Weight: 0.21kg
Allowable working temperature range -55 ℃~+155 ℃
Maximum allowable speed: 20000 RPM
Anti vibration: ≥ 20G Anti impact: ≥ 200G
Protection: Can withstand salt spray test.
Due to the use of a structure similar to that of a motor, it has high reliability

J52XFW001 brushless rotary transmitter

Can meet designs of different external dimensions
Can provide different levels of protection (IP)
Can provide higher and lower temperature resistance levels (up to 220 ℃, down to -80 ℃)
Can provide higher accuracy (up to ≤± 5 ″)
