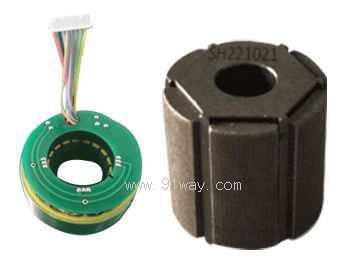

Product name： | 38ZW05 DC brushless refrigeration machine motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC brushless motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 38ZW05 DC brushless refrigeration machine motor
|
project |
indicator |
|
Rated voltage (V) |
twenty-four |
|
Rated current (A) |
≤0.48 |
|
Rated speed (rpm) |
3450±150 |
|
Rated torque (N.m) |
zero point zero two five |
|
efficiency |
≥78% |
|
No load current (A) |
≤0.1 |
|
Idle speed (rpm) |
3800±200 |
|
Weight (g) |
≤120 |
