Your location：Home → motor products → torque motor → Brushless torque motor → J54LWX002 type permanent magnet brushless DC torque motor |

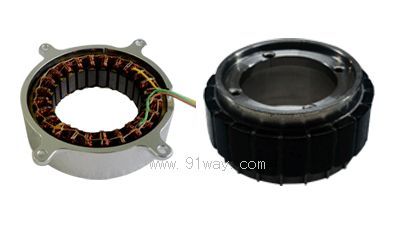

Product name： | J54LWX002 type permanent magnet brushless DC torque motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- Brushless torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of J54LWX002 permanent magnet DC brushless torque motor
project | indicator |
Rated voltage (V) | twenty-eight |
Idle speed (rpm) | 2320±200 |
Peak locked rotor current (A) | ≤3 |
Peak stalling torque (N.m) | ≥0.3 |
Torque fluctuation coefficient | ≤5% |
Continuous locked rotor current (A) | ≤1.5 |
Continuous stalling torque (N.m) | ≥0.135 |
Armature resistance (Ω) | four point four |
Armature inductance (mH) | one point three five |
Insulation resistance (M Ω) | ≥50(500VDC) |
Weight (g) | ≤100 |
