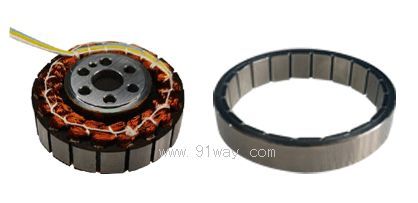

Product name： | 45LWX01 DC brushless torque motor | |||||

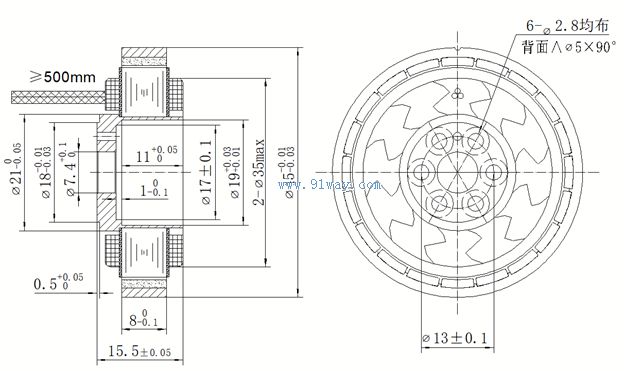

| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- Brushless torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 45LWX01 DC brushless torque motor
|
project |
indicator |
|
Rated voltage (V) |
twenty-six |
|
Idle speed (rpm) |
1100±110 |
|
Peak locked rotor current (A) |
≤1.6 |
|
Peak stalling torque (N.m) |
≥0.3 |
|
Torque fluctuation coefficient |
≤5% |
|
Continuous locked rotor current (A) |
≤0.8 |
|
Continuous stalling torque (N.m) |
≥0.15 |
|
Armature resistance (Ω) |
16±4.8 |
|
Armature inductance (mH) |
9±2.7 |
|
Insulation resistance (M Ω) |
≥100(500V) |
|
Weight (g) |
≤90 |
