Your location：Home → motor products → torque motor → DC torque motor → 53LYX001 DC brushed torque motor |
Product name： | 53LYX001 DC brushed torque motor | |||||

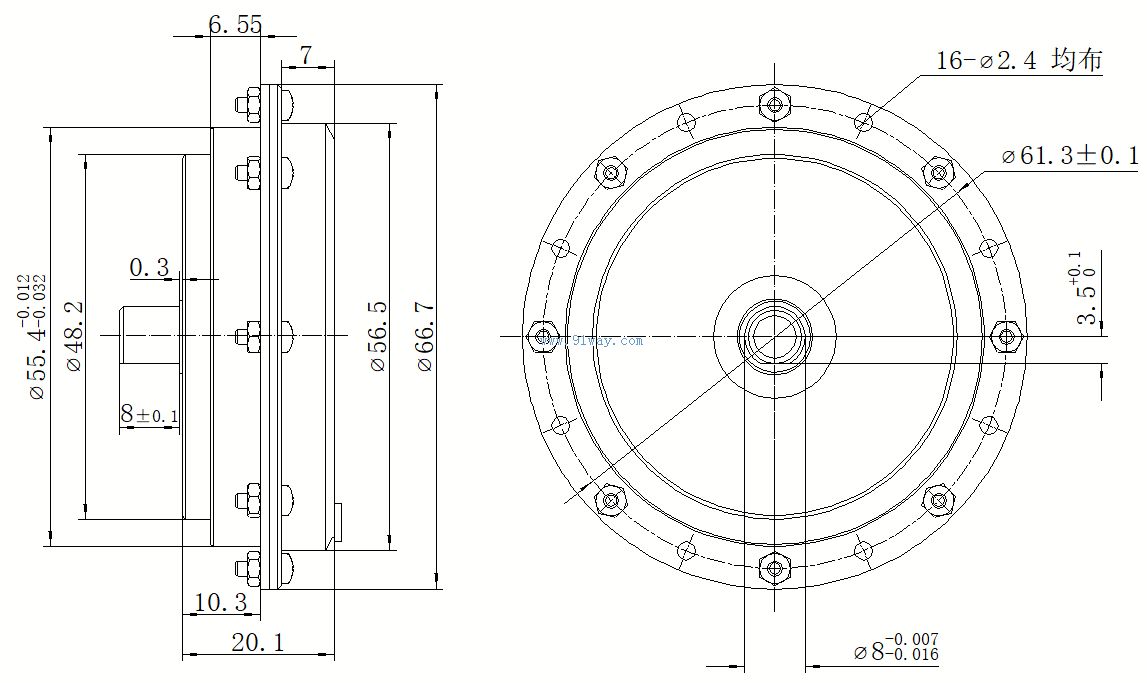

| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 53LYX001 DC brushed torque motor
project | indicator |
Peak locked rotor voltage (V) | ≤27 |
Peak locked rotor current (A) | ≤2.5 |
Peak stalling torque (N.m) | ≥0.175 |
Torque fluctuation coefficient | ≤6% |
Static friction torque (g.cm) | ≤55 |
DC armature resistance (Ω) | 8±1 |
Time constant (ms) | ≤0.4 |
Weight (g) | ≤120 |
