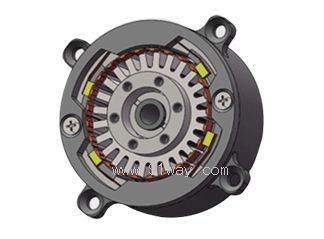

Product name： | 36LYX01 DC brushed torque motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 36LYX01 DC brushed torque motor
|
project |
indicator |
|
Peak locked rotor voltage (V) |
≤27 |
|
Peak locked rotor current (A) |
≤2.5 |
|
Peak stalling torque (N.m) |
≥0.175 |
|
Torque fluctuation coefficient |
≤6% |
|
Static friction torque (g.cm) |
≤55 |
|
DC armature resistance (Ω) |
8±1 |
|
Time constant (ms) |
≤0.4 |
|
Weight (g) |
≤120 |
