Your location：Home → motor products → torque motor → DC torque motor → 49LYX01 DC brushed torque motor |
Product name： | 49LYX01 DC brushed torque motor | |||||

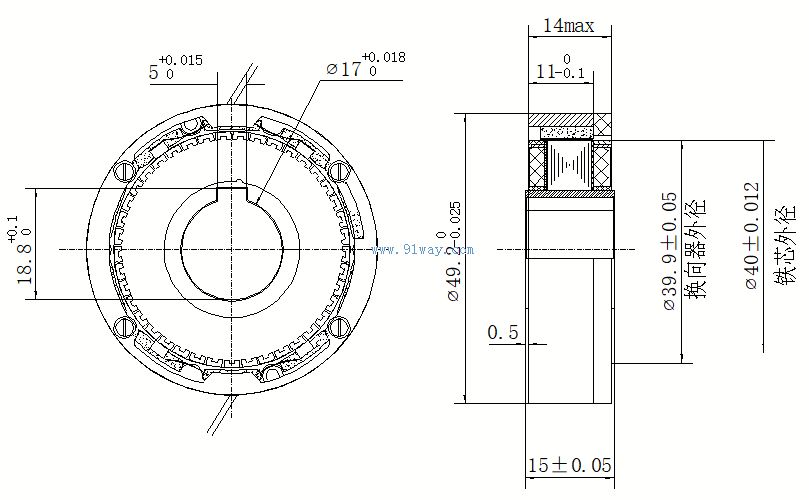

| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 49LYX01 DC brushed torque motor
|
project |
indicator |
|
Peak locked rotor voltage (V) |
twenty-eight point five |
|
Peak locked rotor current (A) |
≤4.6 |
|
Peak stalling torque (N.m) |
0.56±0.1 |
|
Torque fluctuation coefficient |
≤7% |
|
Idle speed (rpm) |
≥1800 |
|
Continuous locked rotor voltage (V) |
nine point five |
|
Continuous locked rotor current (A) |
one point five |
|
Continuous stalling torque (N.m) |
≥0.13 |
|
DC armature resistance (Ω) |
6±1 |
|
DC armature inductance (mH) |
≤10 |
|
Time constant (ms) |
≤1 |
|
Weight (g) |
130±8 |
