Product name： | 38LYX01 DC brushed torque motor | |||||

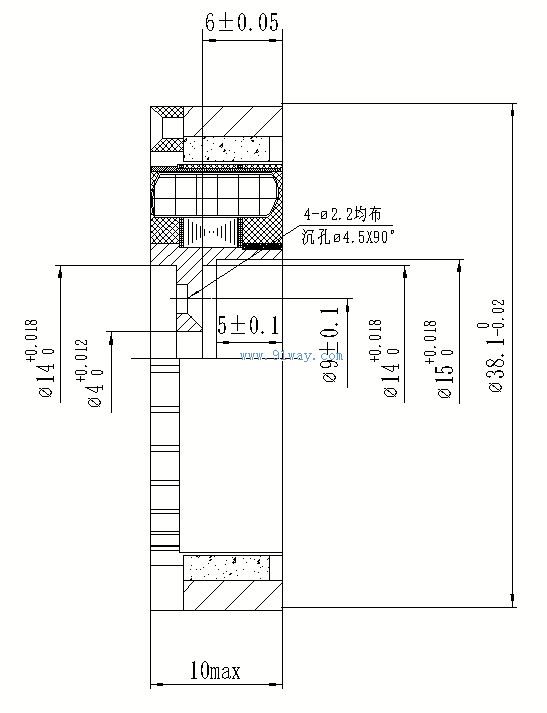

| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 38LYX01 DC brushed torque motor
|
project |
indicator |
|
Peak locked rotor voltage (V) |
twenty-four |
|
Peak locked rotor current (A) |
≤3 |
|
Peak stalling torque (N.m) |
≥0.09 |
|
No load starting voltage (V) |
≤1.0 |
|
Idle speed (rpm) |
4000×(1±10%) |
|
Continuous locked rotor voltage (V) |
7±2 |
|
Continuous locked rotor current (A) |
≤0.9 |
|
Continuous stalling torque (N.m) |
≥0.03 |
