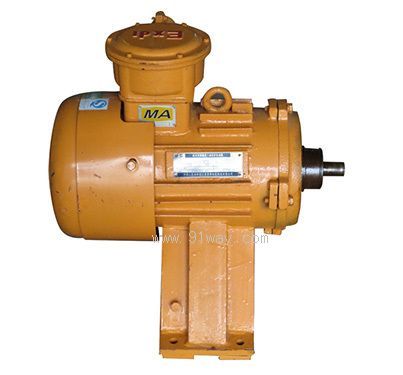

YBJ Explosion proof three-phase asynchronous motorDetailed product description：

YBJ series explosion-proof three-phase asynchronous motor for winches, applicable scope:

The YBJ series explosion-proof three-phase asynchronous motor for winches is suitable for underground coal mines and serves as a dedicated matching motor for dispatching winches. The explosion-proof performance complies with the provisions of GB3836 "Electrical Equipment for Explosive Gas Environments". The explosion-proof mark is "EXDI".

YBJ series explosion-proof three-phase asynchronous motor parameters for winches:

Rated voltage: 380V/660V
Rated frequency: 50Hz
Power range: 11.4KW, 25KW, 40KW
Protection level; IP44 (junction box IP54)
Insulation level: F
Protection level: IP55
Installation form: B3, B5, B35

YBJ25kw YBJ40kw Outline Installation Dimensional Diagram:

power

installation dimensions

Overall dimensions

D

E

F

G

M

N

T

P

n

s

AC

AD

L

twenty-five

forty-eight

one hundred and ten

fourteen

four hundred and twenty-five

ø515

ø485

ten

ø545

twelve

fifteen

four hundred and fifty

three hundred and ninety-five

two hundred and fifty-six

forty

sixty

one hundred and forty

eighteen

fifty-three

ø640

ø610

ten

ø680

eight

nineteen

four hundred and fifty

four hundred

eight hundred and thirty-five
