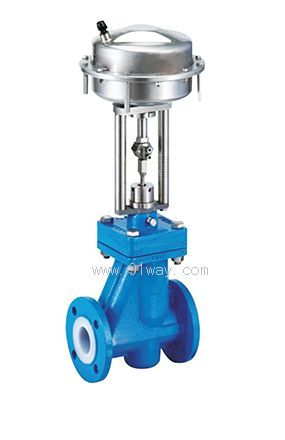

EGSC series lined plastic single seat regulating valveDetailed product description：

The EGSC-2323 single seat fluorine lined regulating valve uses high-pressure injection molding technology for the parts in contact with the medium, and adopts double sealing of polytetrafluoroethylene corrugated pipe and packing. It has the advantages of good corrosion resistance, long service life, high adjustment accuracy, safety and reliability, and easy maintenance.

valve size
NPS 3/4～8、DN 20～200

Valve body material
Standard parts: WCB, CF8, CF8M
Non standard parts: F46, PTFE, PFA

EGSC series lined plastic single seat regulating valve temperature range
-4 ° F to 302 ° F; -20 ° C to 150 ° C, depending on the selected material
pressure rating
PN10/16; ANSI Class 150
connection method
flanged
Sealing grade
IV. V and VI levels
standard
GB/T4213-2024
HG/T20592/20615-2009
ANSI/ASME B 16.5-2009

The main application of EGSC series lined plastic single seat regulating valve
Widely applicable to process automatic control of highly corrosive media such as acids and alkalis, as well as toxic and volatile gas and liquid media in industries such as chemical, petroleum, metallurgy, pharmaceuticals, and power.
