Product name：

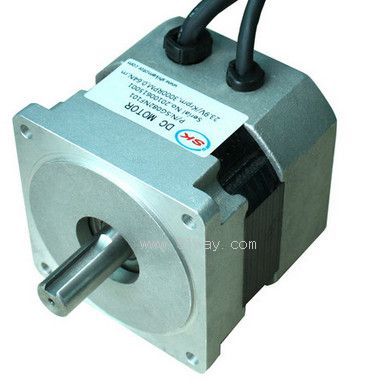

82SWB series brushless DC motor

specification：

Zoom in on the image

Category：

motor products -- DC brushless motor

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

82SWB series brushless DC motorDetailed product description：

82SWB series brushless DC motor
82mm NEMA34 standard motor
Insulation grade F, high temperature resistance of 155 degrees Celsius
Using high-performance magnetic steel with a higher power to weight ratio.
Using optimized magnetic design without any cogging effect
Various drivers, encoders, etc. can be optionally installed, suitable for different automation equipment applications
Can replace imported motors: AMETEK MCG PITTMAN
Widely used in packaging machinery, spray painting machines, winding machines, scientific testing instruments, etc

Standard Model Part Number	Unit	82SWB01	82SWB02	82SWB03
Rated Torque	N.m	zero point six three	one point three	one point seven six
Rotary Inertia	g.cm^two	zero point one five	zero point two eight	zero point four two
Total Length	mm	seventy-eight	one hundred and three	one hundred and twenty-eight
Weight	Kgs	one point nine	two point four	three point five

Different winding parameters: Winding Options	Unit	01L2	02L4	03L4
Rated Voltage	V	twenty-four	forty-eight	forty-eight
No load speed	rpm	three thousand and two hundred	three thousand four hundred and fifty	three thousand four hundred and fifty
No load current	A	one point two	zero point nine	one point one
Rated Speed	rpm	two thousand eight hundred and fifty	three thousand and fifty	three thousand
Rated Current	A	ten point five	nine point five	eleven point five
Rated power output	W	one hundred and ninety	three hundred and sixty	four hundred and fifty

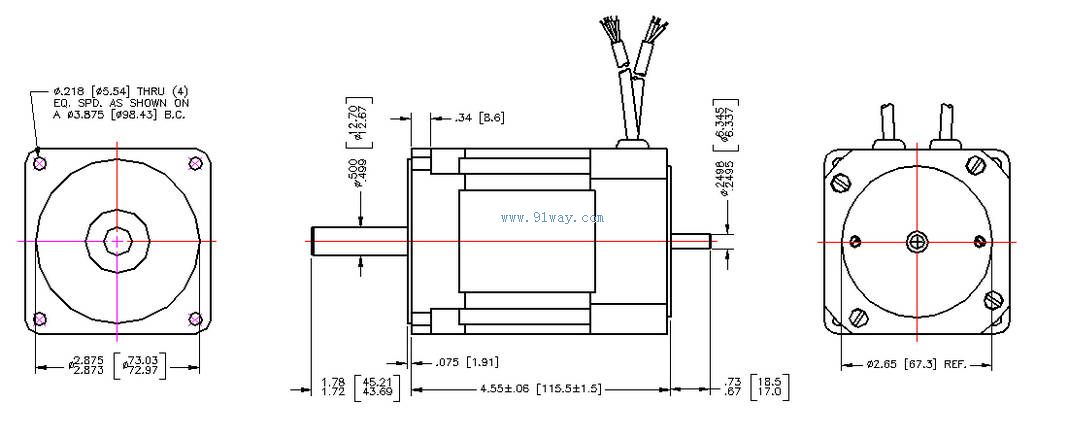

82SWB series brushless DC motor（schematic diagram）
