Product name：

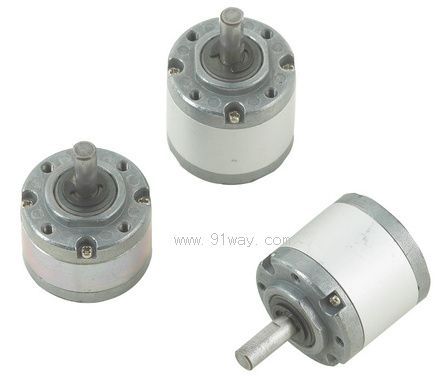

PG52 series planetary gearbox

specification：

Zoom in on the image

Category：

mechanical transmission -- gearbox

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-13371811002

91way@163.com
13371811002(Wechat)

PG52 series planetary gearboxDetailed product description：

PG52 series planetary gearbox

The lifespan of the two materials of the first stage planet under rated torque is the same
Plastic material is generally used for motors of the same diameter
The input end can be adjusted reasonably according to the size of the motor:
Adjustable size: Stop diameter Φ 25H7, Stop depth 3,
Effective length of motor shaft 19 (proportional to gear length variation)
Adjustable size: diameter of the back cover
The output end can be specially configured according to the customer's special requirements:
The diameter of the output shaft cannot exceed 15, and the installation protrusion cannot be smaller than the diameter of 32

The output flange of PG52 series planetary gearbox can be square shaped

Transmission level	Primary transmission	Secondary transmission	Three stage transmission
transmission efficiency	90%	81%	73%
Maximum radial load	200N	320N	450N
Maximum axial load	60N	100N	150N
Instantly withstand torque	3 times the rated torque
Operating Temperature	-10 ℃ to+80 ℃
lubrication method	lubrication
Installation Method	Install arbitrarily
Recommended input speed	3000RPM
Input and output	same direction
Gearbox length L1	91.4mm	107.8mm	124.2mm
Box length L2	66.4mm	82.8mm	99.2mm
Rear cover length L3	17.7mm

First stage planetary gear material		Primary transmission	Secondary transmission	Three stage transmission
Transmission torque	Plastic POM	1.2N.M	4 N.M	25 N.M
Transmission torque	Metal 40Cr	4N.M	12 N.M	25 N.M
Noise	Plastic POM	45Db(A)
Noise	Metal 40Cr	60Db(A)

Speed ratio arrangement:

Primary transmission	Secondary transmission	Three stage transmission
three point six five	thirteen	forty-nine	one hundred and eighty-eight
five point three six	twenty	seventy-one	two hundred and six
six point five five	twenty-four	eighty-seven	two hundred and forty-eight
eight point six three	thirty-one	one hundred and five	two hundred and seventy-two
	twenty-nine	one hundred and fifteen	two hundred and eighty-one
	thirty-five	one hundred and twenty-eight	three hundred and three
	forty-three	one hundred and fifty-four	three hundred and seventy
	forty-six	one hundred and fifty-seven	three hundred and ninety-nine
	fifty-six	one hundred and sixty-nine	four hundred and eighty-nine

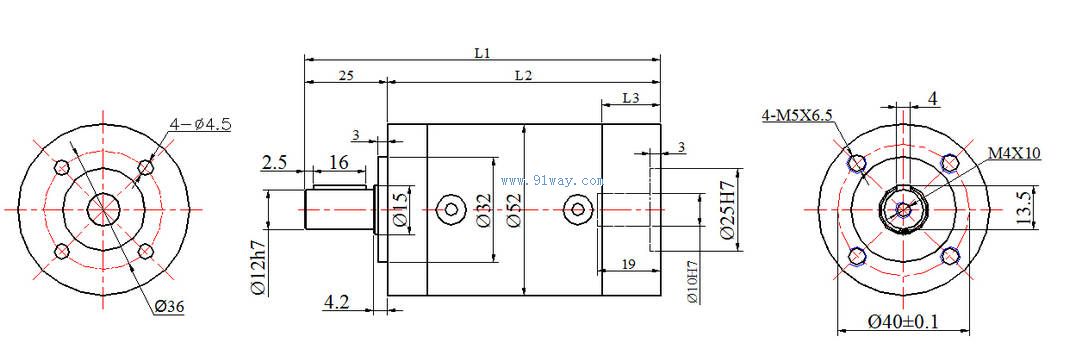

PG52 series planetary gearbox（schematic diagram）
