Your location：Home → motor products → DC motor → DC brushless motor → 57ZWS02 DC permanent magnet brushless motor |

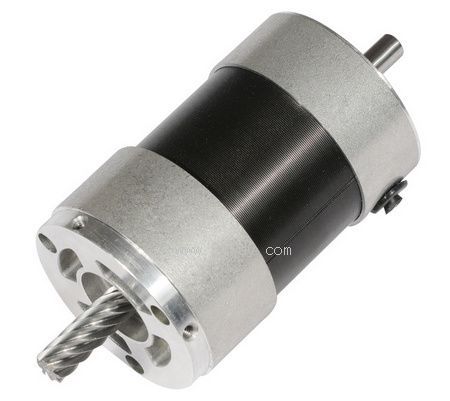

Product name： | 57ZWS02 DC permanent magnet brushless motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC brushless motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
|
Motor Data |
Units |
Part No. |
|
57ZWS02 | ||
|
voltage |
V |
sixty |
|
rated load |
N.m |
zero point two seven |
|
Operating speed |
RPM |
five thousand |
|
rated current |
A |
three point five |
|
EMF constant |
V/KRPM |
eight point eight |
|
resistor |
Ω |
one point one four |
|
inductance |
mH |
three |
