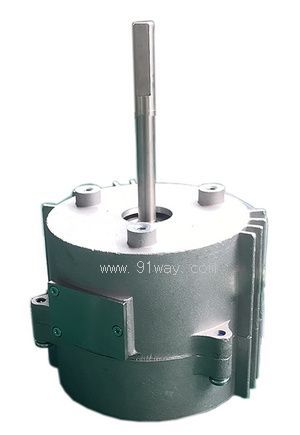

| Product name: | 100ZW001 DC permanent magnet brushless motor | ||||||
| specification: | ![]() |
||||||
| Category: | motor products -- DC brushless motor | ||||||
| Price: | factory price | ||||||
| Brand: | Shanghai | ||||||
| Place of Origin: | China | ||||||
| Available Quantity: | batch | ||||||
| delivery cycle: | Spot goods (or inquire by telephone) | ||||||
|
|||||||
Motor Data | Units | Part No. |
100ZWS001 | ||
rated voltage | V | one hundred and forty-four |
rated current | A | six point eight seven |
rated torque | N.m | zero point six four |
rated speed | RPM | three thousand and six hundred |
rated power | W | one hundred and four |
no-load speed | RPM | six thousand |
Peak torque | N.m | one point nine two |
peak current | A | twenty point six |
EMF constant | V/KPRM | seven point three two |
no-load current | A | one point zero three |
operating noise | dB | ≤66 |

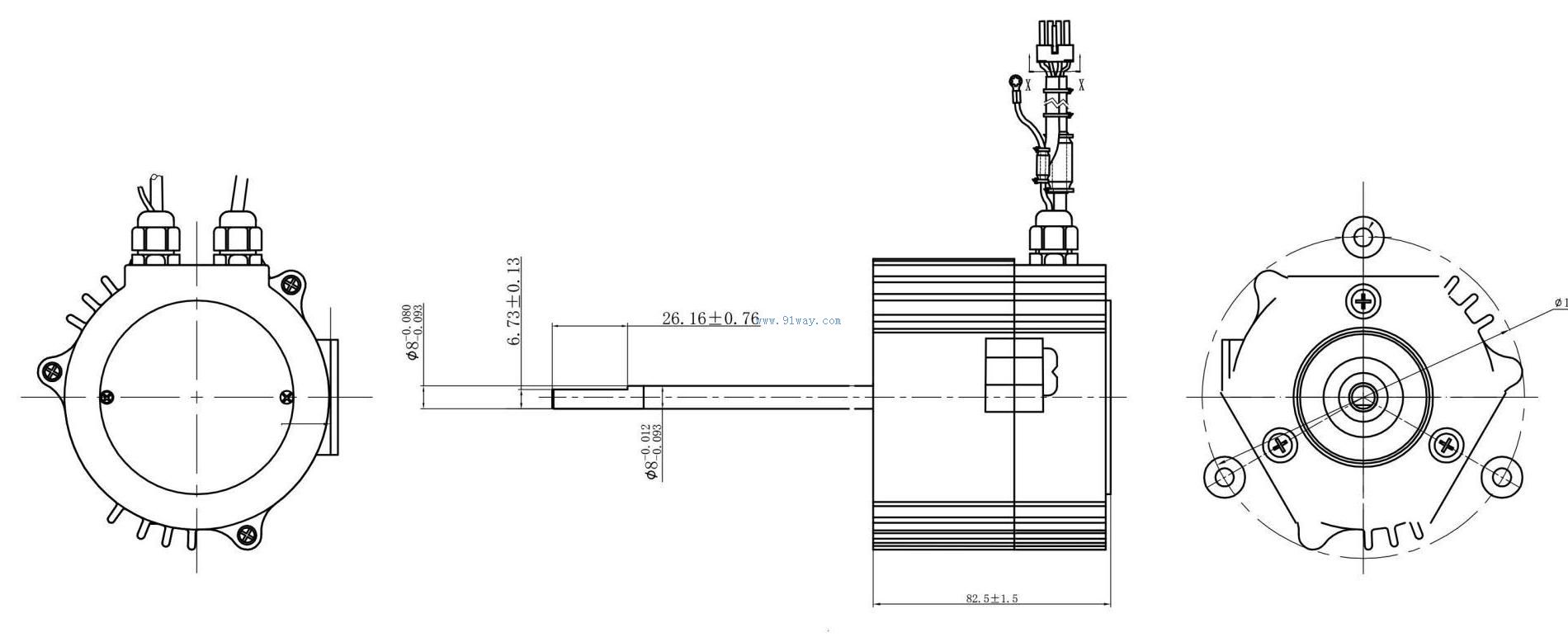

Body length L | mm | eighty-two point five |
