Model/Type

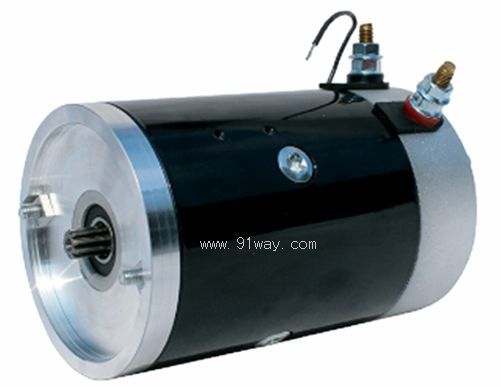

BZD64

Modulus/Module

22DP(1.1545)

Power/Power (KW)

one point six

Voltage/Voltage (V)

twelve

Current/Current (A)

one hundred and ninety-five

Speed/Speed (r/min)

two thousand and five hundred

Turn/Rotation

CW

Protection level/Protection

IP44

Number of teeth/Tooth no

nine

Pressure angle/Pressure

thirty-seven point five

Dividing circle diameter/Pitch dia

eleven point two five

Tooth tip diameter/Tip diameter

twelve point three eight

Root diameter

nine point eight eight

Public law length/Common normal

five point five six

Number of Spanned Teeth

two

Excitation method/Excitation

Re excitation

Weight/Weight (kg)

seven point five

Work schedule/DUTY

2min

7.5%ED
