ZD1225,ZD2425 type DC traction motor-[Quotation-data]--Shanghai Huabang Industrial Business-www.91way.com

Product name：

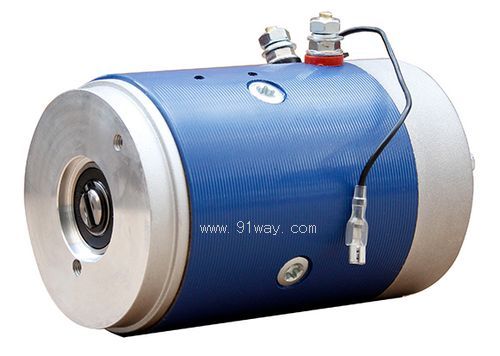

ZD1225,ZD2425 type DC traction motor

specification：

Category：

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

ZD1225,ZD2425 type DC traction motorDetailed product description：

ZD1225, ZD2425 DC traction motors

Model/Type	ZD1225	ZD2425
Power/Power (KW)	one point six	two point five
Voltage/Voltage (V)	twelve	twenty-four
Current/Current (A)	one hundred and ninety-five	one hundred and sixty-five
Speed/Speed (r/min)	two thousand and five hundred	two thousand and six hundred
Turn/Rotation	CW	CW
Protection level/Protection	IP44	IP44
Excitation method/Excitation	Re excitation	Re excitation
Weight/Weight (kg)	seven point five	seven point five
Work schedule/DUTY	2min	2min
Work schedule/DUTY	7.5%ED	7.5%ED
