Your location：Home → motor products → torque motor → DC torque motor → 53LYX002 DC brushed torque motor |
Product name： | 53LYX002 DC brushed torque motor | |||||

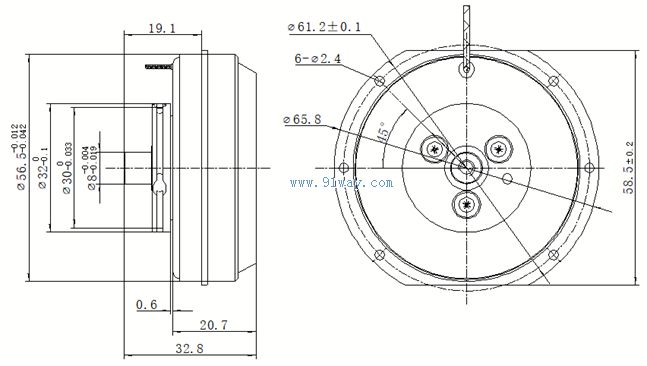

| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC torque motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Main technical specifications of 53LYX002 DC brushed torque motor
project | indicator |
Locking voltage (V) | twenty-seven |
Peak locked rotor current (A) | ≤3.2 |
Peak stalling torque (N.m) | ≥0.52 |
Torque fluctuation coefficient | ≤8% |
No load starting voltage (V) | ≤1 |
Idle speed (rpm) | 1250±125 |
Positive and negative speed difference (rpm) | ≤50 |
Static friction torque (N.m) | ≤0.018 |
DC armature resistance (Ω) | 9±1.5 |
Time constant (ms) | ≤0.7 |
Weight (g) | 250±5 |
