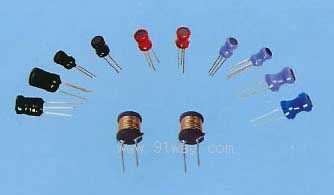

LGB1012工字型电感器电气特性参数

料号

电感量 uH

测试频率

直流电阻Ω

额定电流 mA

LGB1012 - 1R0M

1.0

1KHz/0.3V

0.010

6000

LGB1012 - 1R5M

1.5

1KHz/0.3V

0.010

6000

LGB1012 - 1R8M

1.8

1KHz/0.3V

0.015

6000

LGB1012 - 2R7M

2.7

1KHz/0.3V

0.015

5500

LGB1012 - 3R3M

3.3

1KHz/0.3V

0.015

5500

LGB1012 - 3R9M

3.9

1KHz/0.3V

0.020

5000

LGB1012 - 4R7M

4.7

1KHz/0.3V

0.020

5000

LGB1012 - 5R6M

5.6

1KHz/0.3V

0.025

4800

LGB1012 - 6R8M

6.8

1KHz/0.3V

0.025

4800

LGB1012 - 8R2M

8.2

1KHz/0.3V

0.025

4500

LGB1012 – 100K

10

1KHz/0.3V

0.025

4500

LGB1012 – 120K

12

1KHz/0.3V

0.025

4300

LGB1012 – 150K

15

1KHz/0.3V

0.035

4300

LGB1012 – 180K

18

1KHz/0.3V

0.040

4000

LGB1012 – 220K

22

1KHz/0.3V

0.045

3700

LGB1012 - 270K

27

1KHz/0.3V

0.045

3500

LGB1012 – 330K

33

1KHz/0.3V

0.055

3000

LGB1012 – 390K

39

1KHz/0.3V

0.060

2500

LGB1012 – 470K

47

1KHz/0.3V

0.080

2300

LGB1012 – 560K

56

1KHz/0.3V

0.085

2000

LGB1012 – 680K

68

1KHz/0.3V

0.095

2000

LGB1012 – 820K

82

1KHz/0.3V

0.11

1800

LGB1012 – 101K

100

1KHz/0.3V

0.14

1700

LGB1012 – 121K

120

1KHz/0.3V

0.16

1500

LGB1012 – 151K

150

1KHz/0.3V

0.18

1400

LGB1012 – 181K

180

1KHz/0.3V

0.25

1300

LGB1012 – 221K

220

1KHz/0.3V

0.28

1000

LGB1012 – 271K

270

1KHz/0.3V

0.42

900

LGB1012 – 331K

330

1KHz/0.3V

0.54

800

LGB1012 – 391K

390

1KHz/0.3V

0.60

800

LGB1012 – 471K

470

1KHz/0.3V

0.66

700

LGB1012 – 561K

560

1KHz/0.3V

0.74

600

LGB1012 – 681K

680

1KHz/0.3V

0.84

500

LGB1012 – 821K

820

1KHz/0.3V

1.08

500

LGB1012 – 102K

1000

1KHz/0.3V

1.39

500

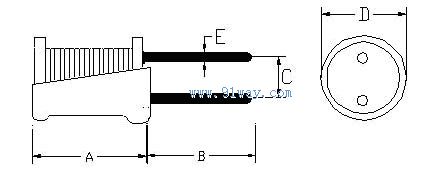

P/N

料号

A

(MAX)

B

(MIN)

C

(MAX)

D

(MAX)

E

(MAX)

0406

8.0

10.0

2.0±0.5

5.0

0.5±0.1

0608

10.0

10.0

3.0±0.5

7.0

0.6±0.1

0810

12.5

10.0

5.0±0.5

9.0

0.6±0.1

0912

15.0

10.0

5.0±0.5

11.0

0.6±0.1

1012

15.0

10.0

7.0±1.0

12.0

0.8±0.1

1016

19.0

10.0

7.0±1.0

12.0

0.8±0.1

1415

18.0

10.0

8.0±1.0

16.0

0.8±0.1
