Your location：Home → motor products → DC motor → DC traction motor → XQT-3-14HV Golf Cart DC Traction Motor |

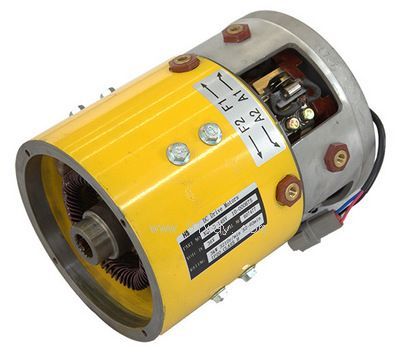

Product name： | XQT-3-14HV Golf Cart DC Traction Motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC traction motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
|
Motor model |
XQT-3-14HV |
|
rated power |
3KW |
|
rated voltage |
36V(D.C) |
|
rated current |
97A |
|
rated speed |
3210r/min |
|
rated field current |
10A |
|
Minimum excitation current |
5A |
|
quota |
60min |
|
protection level |
IP44 |
|
excitation method |
separately excited |
|
Applicable to |
4-6 seater golf carts |
|
structural characteristics |
Unexplained concave shaft extension, 19 tooth imperial internal spline, with speed sensor |
