Your location：Home → motor products → DC motor → DC traction motor → XQ-4-13HV Sightseeing car DC traction motor |

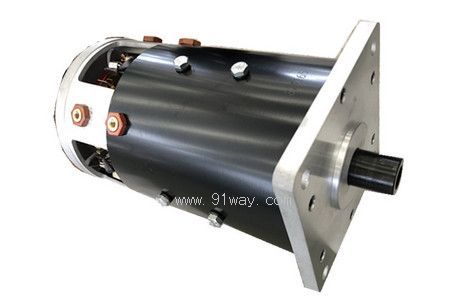

Product name： | XQ-4-13HV Sightseeing car DC traction motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC traction motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
|
Motor model |
XQ-4-13HV |
|
rated power |
4KW |
|
rated voltage |
48V(A.C) |
|
rated current |
102A |
|
rated speed |
2540r/min |
|
quota |
60min |
|
protection level |
IP20 |
|
Applicable to |
ATV, 6-8 seat tour bus |
|
structural characteristics |
Method: Lan connection, internal spline output shaft (m=1, z=18), with speed sensor |
