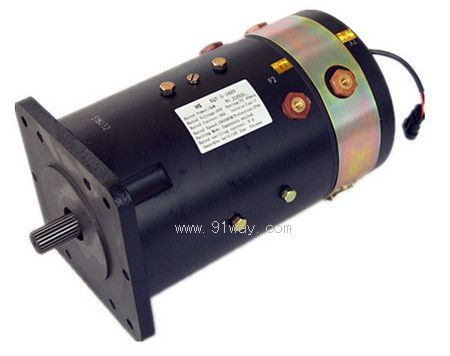

Product name： | XQT-5-16HV Electric vehicle DC traction motor | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | motor products -- DC traction motor | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
|
Motor model |
XQT-5-16HV |
|
rated power |
5KW |
|
rated voltage |
60V(D.C) |
|
rated current |
98A |
|
rated speed |
2800r/min |
|
rated field current |
9A |
|
Minimum excitation current |
5.2A |
|
quota |
60min |
|
protection level |
IP44 |
|
excitation method |
separately excited |
|
Applicable to |
Low speed electric vehicles |
|
structural characteristics |
Method: Lan connection, spline output shaft (m=1, z=22), with speed sensor |
