Product name：

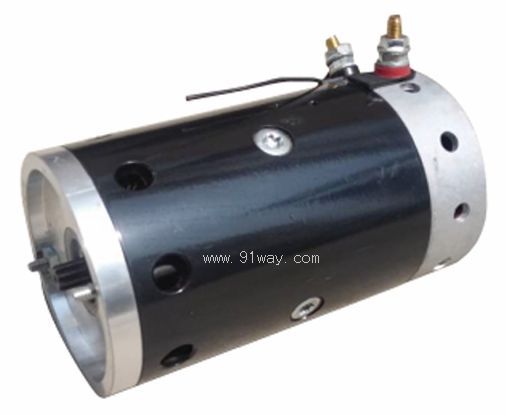

ZD1230.1F type DC traction motor

specification：

Category：

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-139101609058

91way@163.com
13901609058(Wechat)

ZD1230.1F type DC traction motorDetailed product description：

ZD1230.1F type DC traction motor

Model/Type	ZD1230.1F
Modulus/Module	22DP(1.1545)
Power/Power (KW)	two point two
Voltage/Voltage (V)	twelve
Current/Current (A)	two hundred and sixty
Speed/Speed (r/min)	two thousand and five hundred
Turn/Rotation	CW
Protection level/Protection	IP44
Work schedule/DUTY	8min
Work schedule/DUTY	10%ED
Number of teeth/Tooth no	six
Pressure angle/Pressure	thirty-seven point five
Dividing circle diameter/Pitch dia	eleven point two five
Tooth tip diameter/Tip diameter	twelve point three eight
Root diameter	nine point eight eight
Public law length/Common normal	five point five six
Number of Spanned Teeth	two
