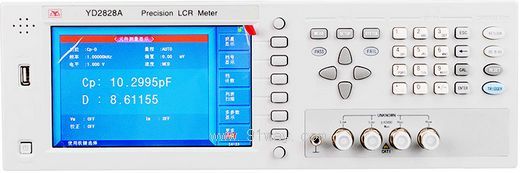

YD2828A Broadband LCR Digital BridgeDetailed product description：

Performance characteristics of YD2828A wideband LCR digital bridge

Four parameter display, any combination of parameters, up to 12 measurement parameters;
7-inch 16:9 TFT LCD display with a resolution of 800 × 480RGB
0.05% basic measurement accuracy, with a maximum testing speed of 50 times per second
20Hz-1MHz test frequency, resolution 10mHz
Automatic Level Control (ALC) function for testing voltage or current
Four different signal sources with output impedances of 30 Ω, 100 Ω, 50 Ω, and 10/CC
Built in comparator, 10 level sorting and counting function
Graphic scanning analysis function, supports frequency/level/bias scanning, easily helps you dissect device performance
10 point list scanning function,
Internal 0V, 1.5V, 2V DC bias voltage source
2m/4m test cable extension (optional)
Optional ± 10V (± 100mA) and 1A internal DC bias source
Save or call 100 sets of internal settings files, and save or call 500 sets of test files on a USB drive
Instrument software version upgrade and update can be achieved through USB HOST
The USB flash drive supports FAT16 and FAT32 file systems
Standard RS232C, Handler, USB HOST, headphone jack, optional GPIB, LAN jack

Test signal level	Normal: 5mV-2V, 1mV step
	Constant level: 10mV-1V, 1mV step
Bias source	Internal: 0V, 1.5V, 2V
display range
|Z|, R, X	0.01mΩ —99.9999MΩ
DCR	0.01mΩ —99.9999MΩ
|Y|, G, B	0.00001µS —99.9999S
C	0.00001pF —9.9999F
L	0.00001µH —9999.99H
D	0.00001 —9.9999
Q	0.00001 —9999.9
θ(DEG)	-179.999º —179.999º
θ(RAD)	-3.14159 —3.14159
Other
Comparator function	Ten levels: (nine levels are qualified, one level is unqualified), and there is also an auxiliary level AUX
memory	10 sets of internal instrument settings for storage/retrieval
interface	Standard RS232C, Handler, USB HOST, headphone jack, optional GPIB, LAN jack
size	W398*H129*D370
weight	About 9KG
