model

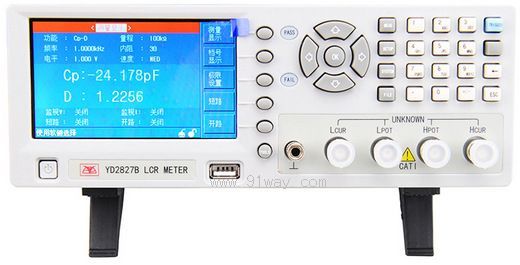

YD2827A

2827B

test parameters

L、C、R、X、Z、D、Q、θ

test frequency point

50Hz,60Hz,100Hz,120Hz,1kHz,10kHz,20kHz,30kHz,

40kHz,50kHz,60kHz,80kHz,100kHz,120kHz,150kHz,

200kHz;

There are a total of 16 testing frequency points

50Hz,60Hz,80Hz,100Hz,120Hz,150Hz,200 Hz,250 Hz,
300 Hz,400 Hz,500 Hz,600 Hz,800Hz,1kHz,1.2k Hz,
1.5k Hz,2k Hz,2.5k Hz,3k Hz,4k Hz,5k Hz,6k Hz,
8k Hz,10kHz,12k Hz,15k Hz,20kHz,25k Hz,30k Hz,
40kHz,50k Hz,60kHz,80k Hz,100kHz,120k Hz,
150k Hz,200k Hz

37 testing frequency points in total

Test voltage level

1V，0.5V，0.3V，0.25V，0.1V

display range

L:0.01nH-9999.99H
C:0.00001pF-9999.99mF
D:0.00001-9.99999
Q:0.01-99999.9
θ:-179.999°-179.999°
R. X, Z: 0.01m Ω -99.9999M Ω

Basic accuracy

0.1% (within the basic range)

measure speed

Slow speed 3 times/second, medium speed 11 times/second, fast speed 40 times/second

equivalent circuit

series connection, parallel connection

Reset function

Open circuit, short circuit, point frequency reset

input impedance

30 Ω and 100 Ω are optional

display mode

Direct reading, file number and file count

Other functions

Internal 100 sets of configuration files External 500 sets of 10 levels sorting function

Power supply and temperature and humidity

198V-240V AC 0 ℃ -40 ℃ 20% -80% RH

Dimensions and Weight

240×100×325（mm) 2.5kg
